Diopside Spectra
 |
Section in Diopside macro crystal (origin Brazil). Some
regions are colorless, they contain only Mg2+ and Fe2+.
Some other places are green colored, they contain also Cr3+
impurities. Spectra recorded on the green spots of the section are characteristic of Cr3+ : two absorption bands are present in the visible range: one between 600 and 700 nm and one around 400 nm. The band in the NIR around 1050 nm is due to crystal field transition in Fe2+ ions. This iron band is mainly developed in colorless regions. |
 |
|
|

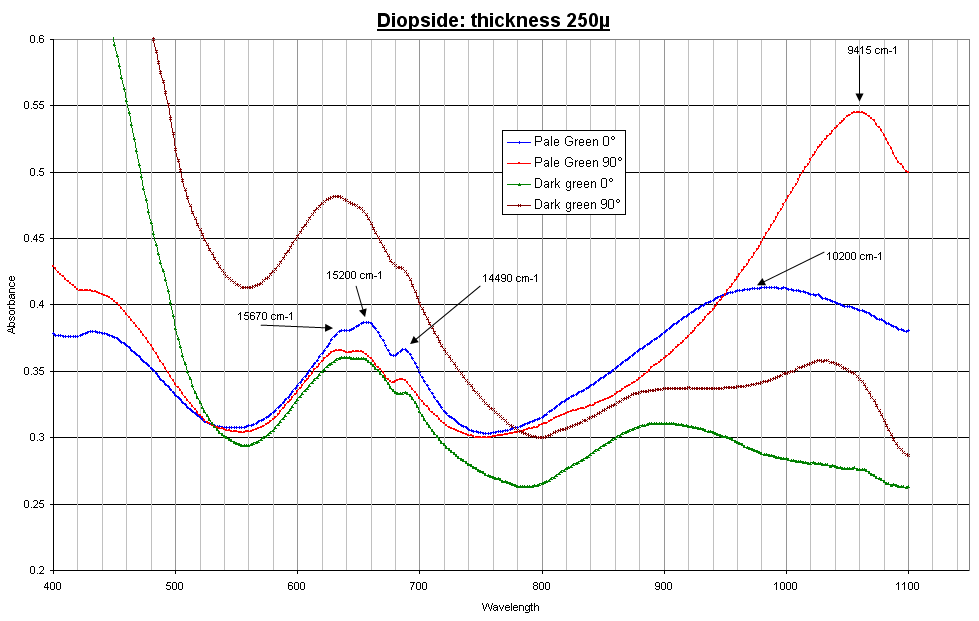

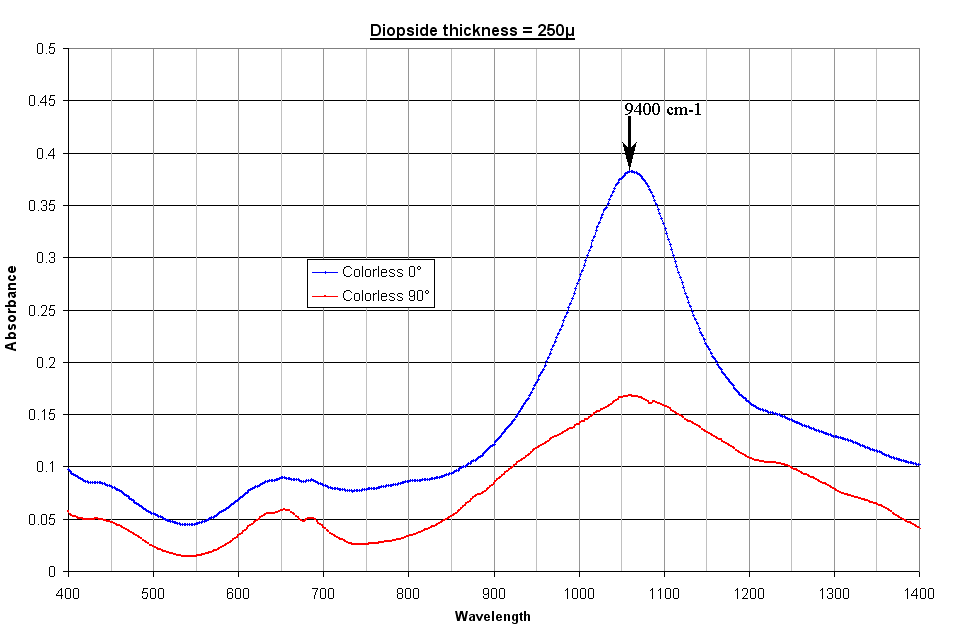

Above: Spectra recorded on the green spots with the first grating only. Below: spectra recorded on a colorless crystal with both gratings. |
|
 |
|
