NIR and Raman spectra of PET (Poly-ethylene terephtalate)

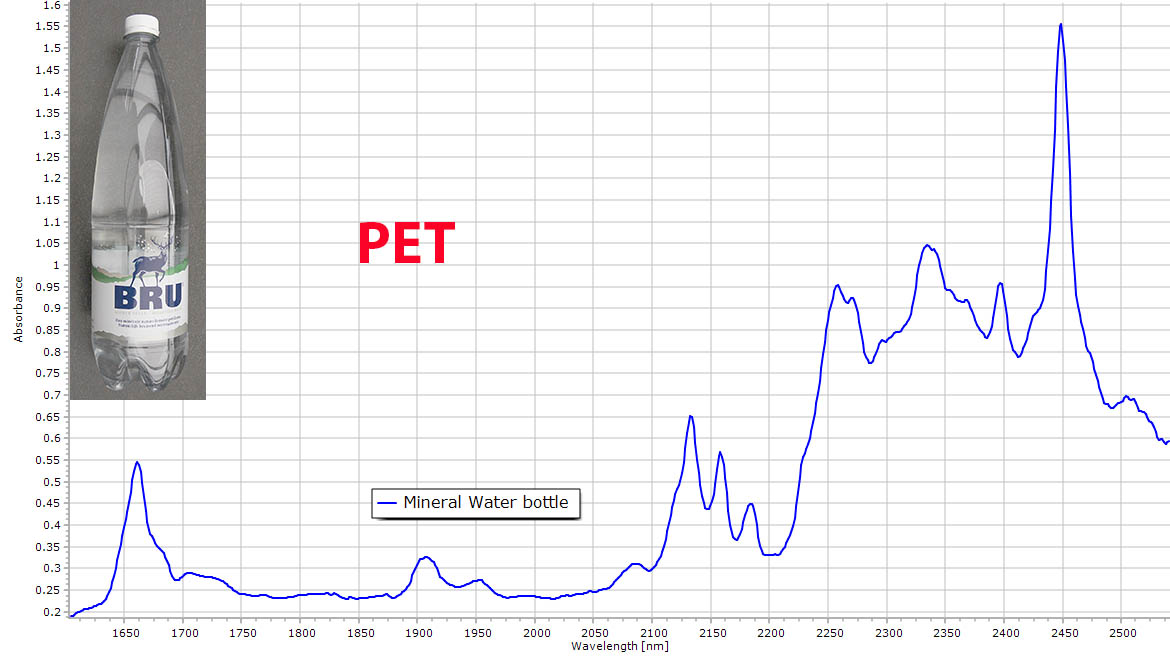

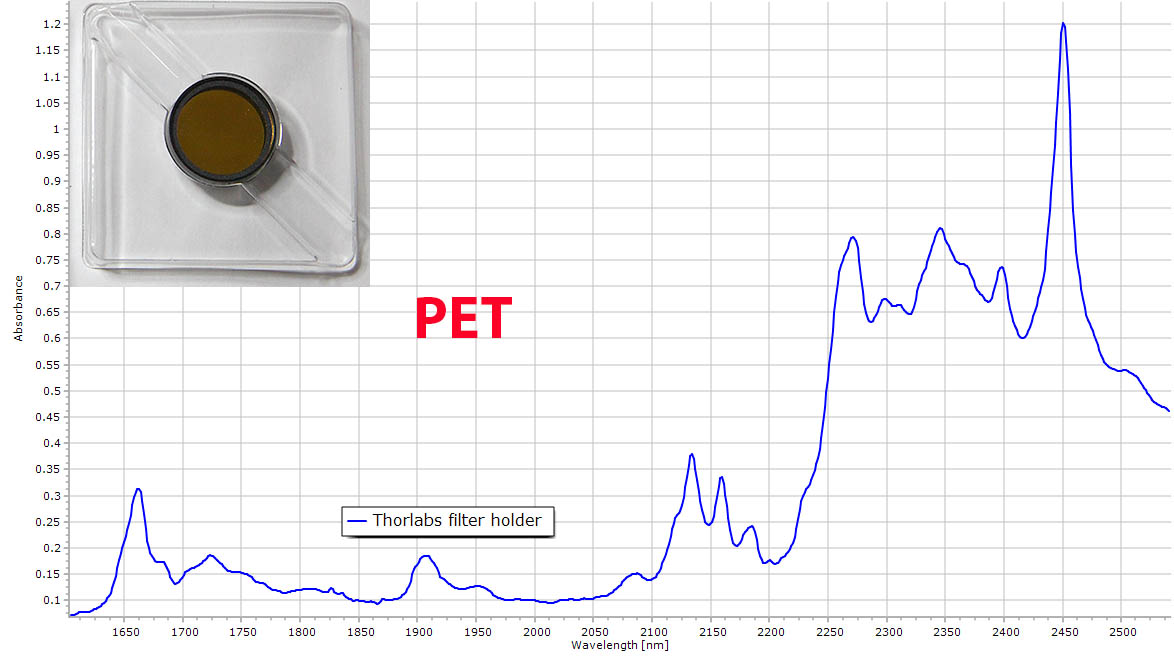

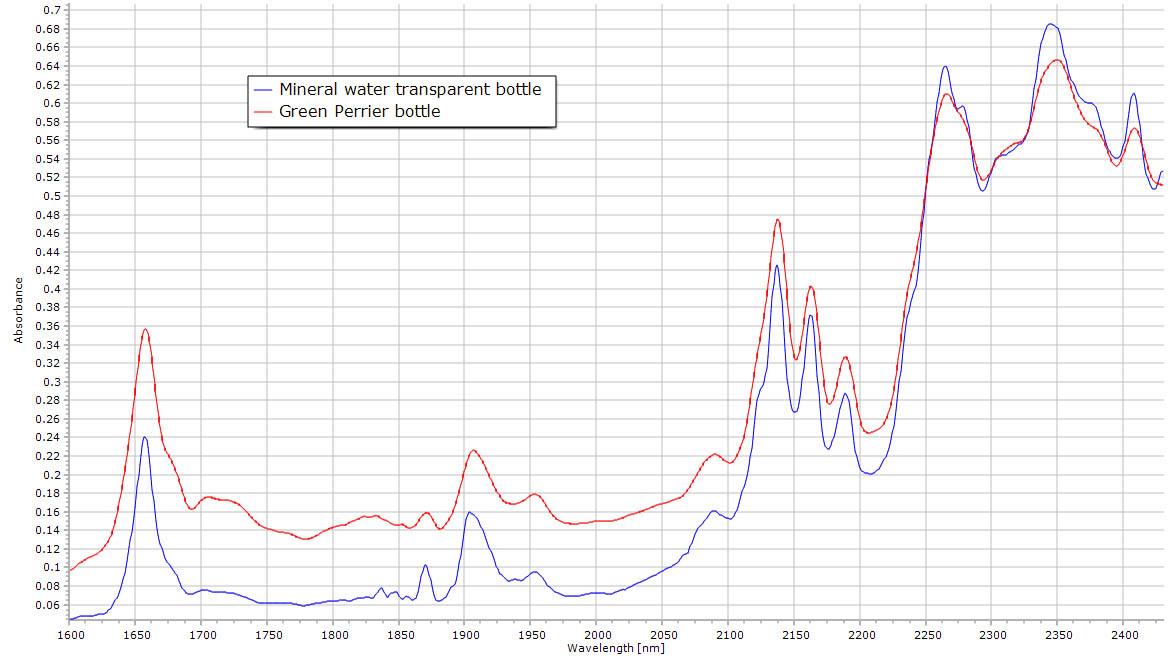

| PET is mainly found in transparent flexible objects like water bottles. The NIR spectra have some similarities with the polystyrene spectra due to aromatic and aliphatic structure.
|
 |
 |
|

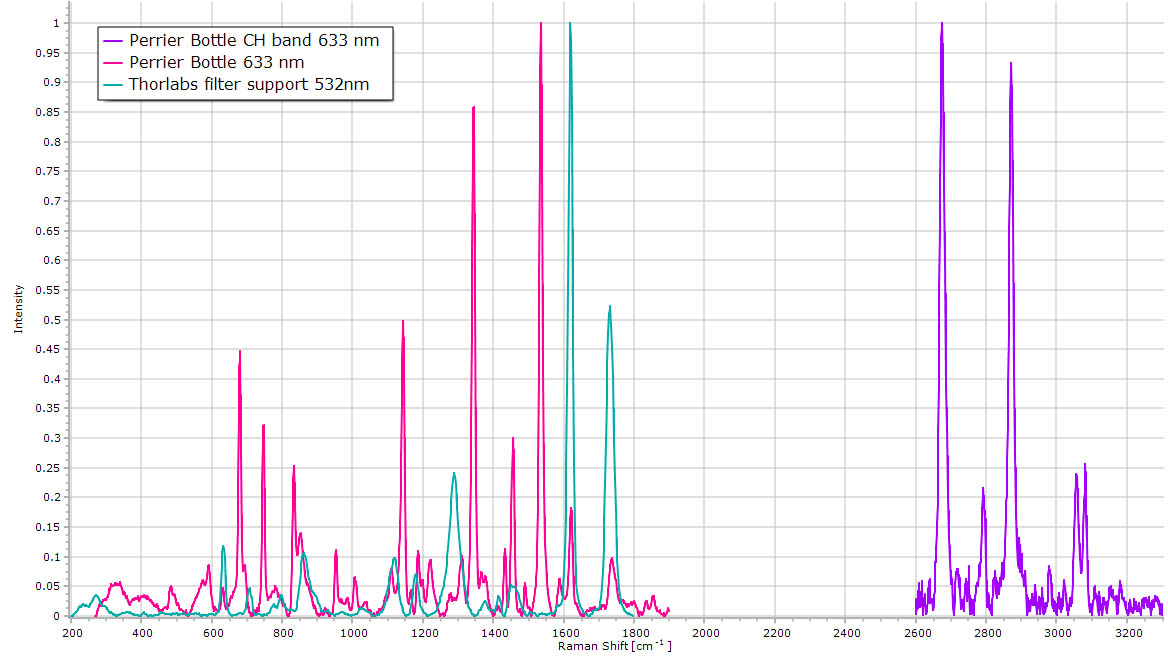

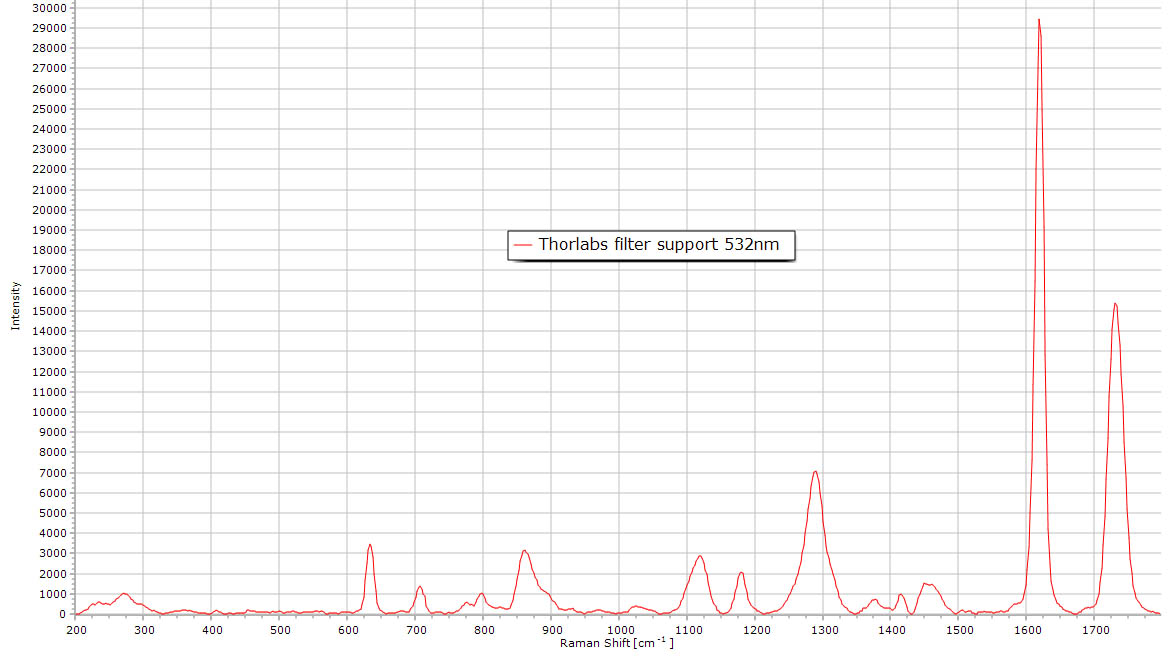

| Raman spectrum of PET showing the large aromatic double bond vibration at about 1625 cm-1 and a C=O bond coming from phtalic acid at 1750 cm-1. |
 |
|
|
 |
|

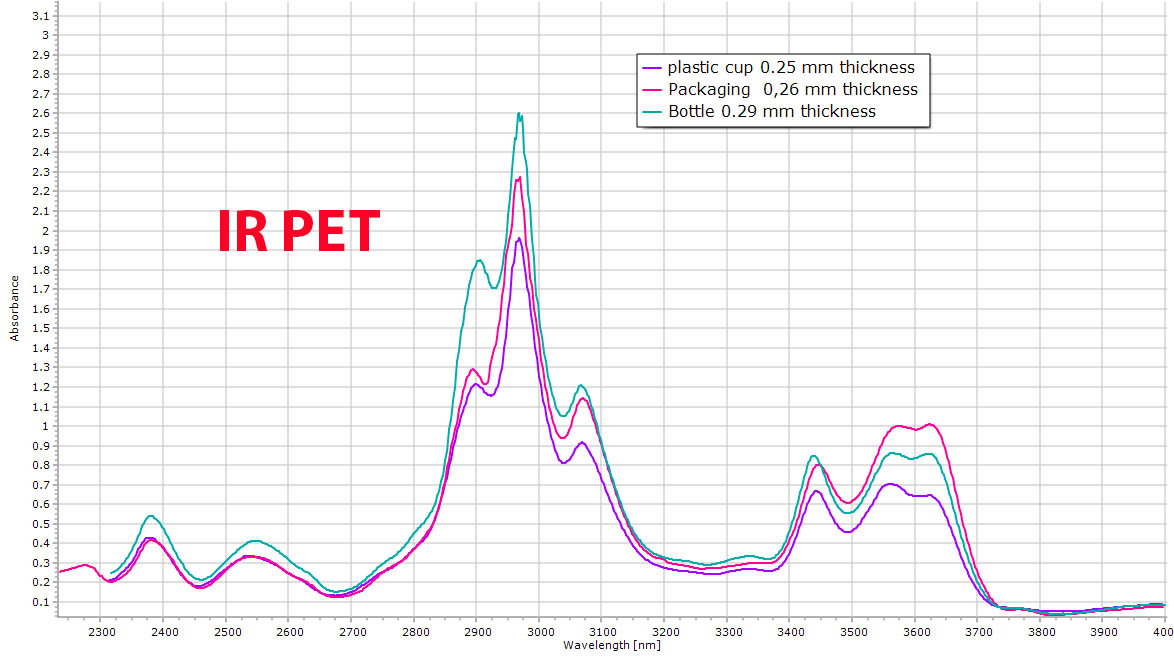

Below are some examples of the low resolution IR spectra obtained with the Foxboro Filter instrument.
|
 |
